ABDULLAH ARIF INTERCHANGE (MECCA BRIDGE)

Winner icon
Infrastructure Projects Winner

About the project

Project category

Infrastructure

Company / Project parties

Cleveland Bridge Steel Company Limited

Location

Saudi Arabia

Images

placeholder imageplay button

ABDULLAH ARIF INTERCHANGE (MECCA BRIDGE)

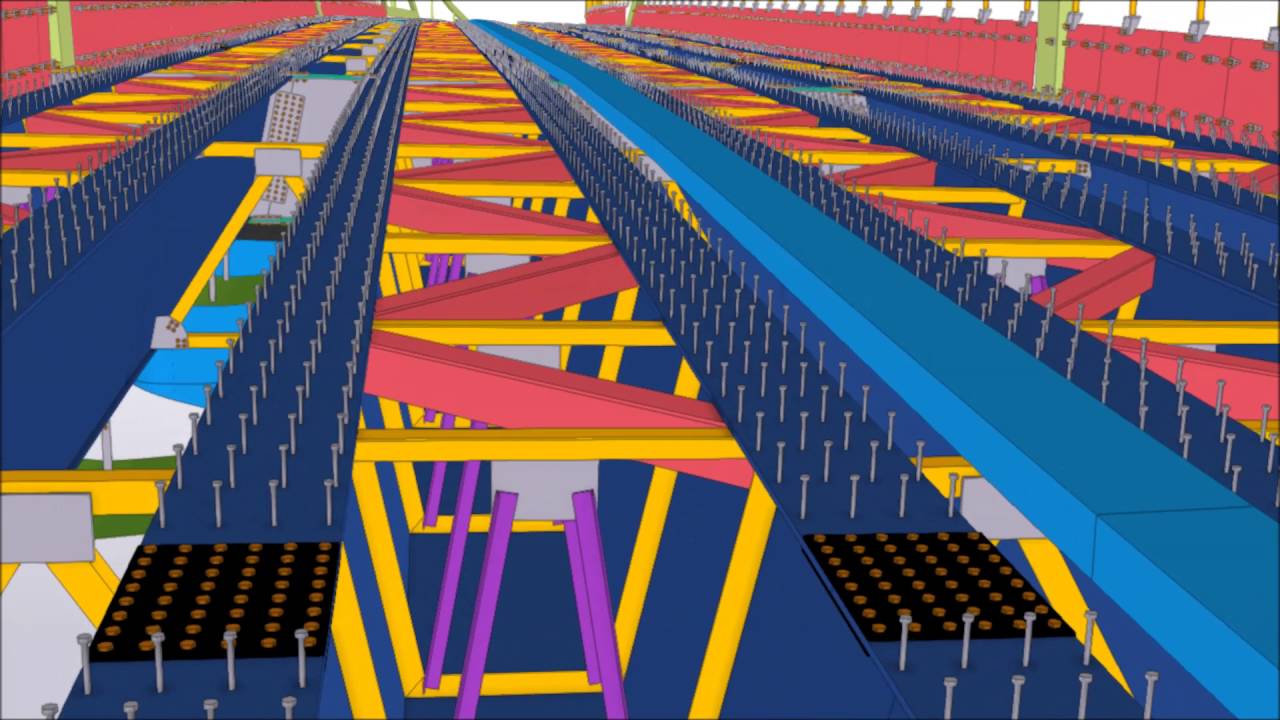

Abdullah Arif intersection Bridge is located in Mecca. The length of bridge is 340 meters containing 6 spans. First 2 span are continuous with lengths of 48.468 meter and next 3 spans are of 59mters, 67 meters, 59 meters. The final span is simply supported with 57.5meters. Basically there are 2 bridges side by side with same length . Design have been performed for 3 lanes keeping in view the future extension of third lane. Usually steel bridges are of I-sections but this is tub girders.
