Dryden Aqua is one of the largest manufacturers of glass filtration media. Our ambitious goal was to design the plant's interior and some smaller steel structures outside.
Â

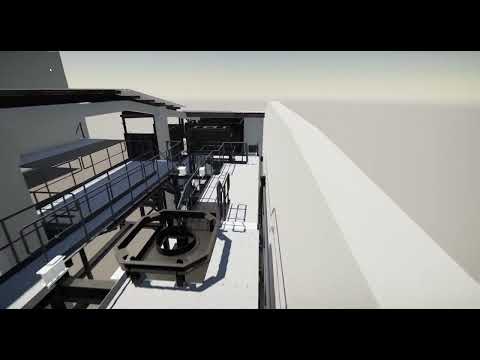

Construction design and technology development were carried out simultaneously, which was quite challenging. However, thanks to Tekla and Trimble Connect, we could design, adapt, and connect every part of the project and provide our manufacturing crew with the 3D model of the steelwork and machines.
Â
We could introduce our ideas and solutions effecting all the people involved in this project. It was also easier to implement some changes which occurred during the designing process. Using Trimble Connect, it was easy to indicate them in the 3D model, which was available on the construction site immediately.
Â
The key to success was simplifying the entire process. We didn't waste our time looking for changes or things that had to be fixed. Workshop documentation was completely prepared in Tekla. Every single plate and profile, beams and columns, trusses and steel hoppers, stairs and ladders, railings, and checkered plates were designed and drawn using Tekla.
