ParaMatic Clash Detection and Rotation Tool

A tool to assemble symmetrical and non-symmetrical parts.

About the project

Project category

Developers

Company / Project parties

ParaMatic

Location

South Africa

Images

placeholder imageplay button

Project in numbers

Tekla API

Tekla Open API

Dev team

3

Lines of code

753

Time spent

3 months

ParaMatic clash detection and rotation tool

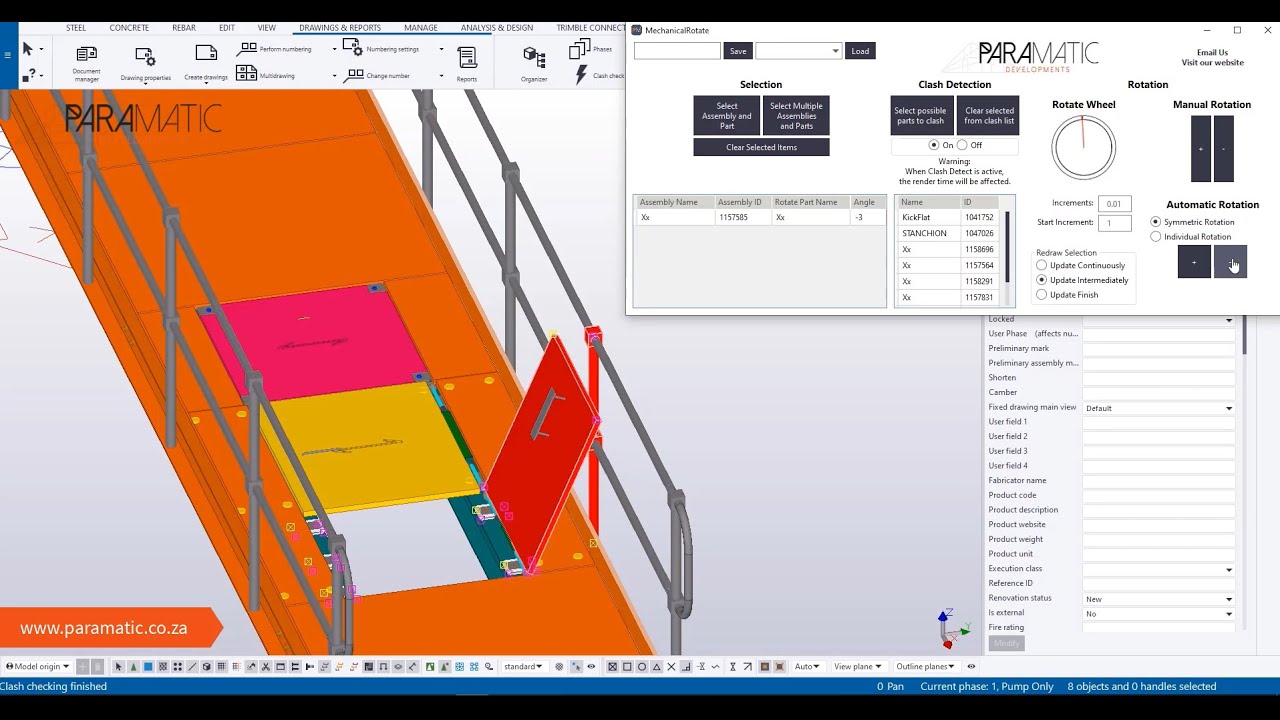

ParaMatic has developed a Clash Detection and Rotation Tool for Tekla Structures to investigate potential clashes and assist with the rotation of multiple assemblies. This rotation and clash detection tool can be used for any assemblies in symmetrical or non-symmetrical parts alike.

Being able to rotate multiple parts simultaneously within Tekla Structures eliminates the need to use the manual Move and Rotate tool, which can, in some cases, be inefficient and cumbersome.


Download the application



Tekla BIM Awards

The Tekla BIM Awards honor projects that transform the way the world builds.

See all projects
