Lilydale Picnic Shelter is a small project that Woodell Detailing provided the structural steel detailing on.Â
Â
Challenges and achievements
The project's uniquely shaped roofline with seemingly random elevations to make a zigzag pattern created challenges. This combined with several skewed lines of steel made it difficult to get the rooflines to flow smoothly. The columns are made up of built-up Corten plates that are exposed to view. The soffit edge is all made up of Corten plates that is exposed to view.Â
Â
Using Tekla software

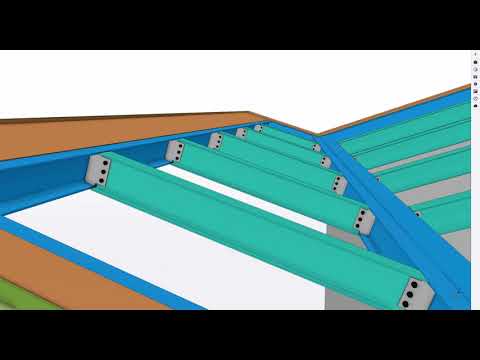

Tekla allowed up to be able to view how the flow of the roof lines would come together which allowed us to make adjustments to make a smooth flowing roofline.Â
