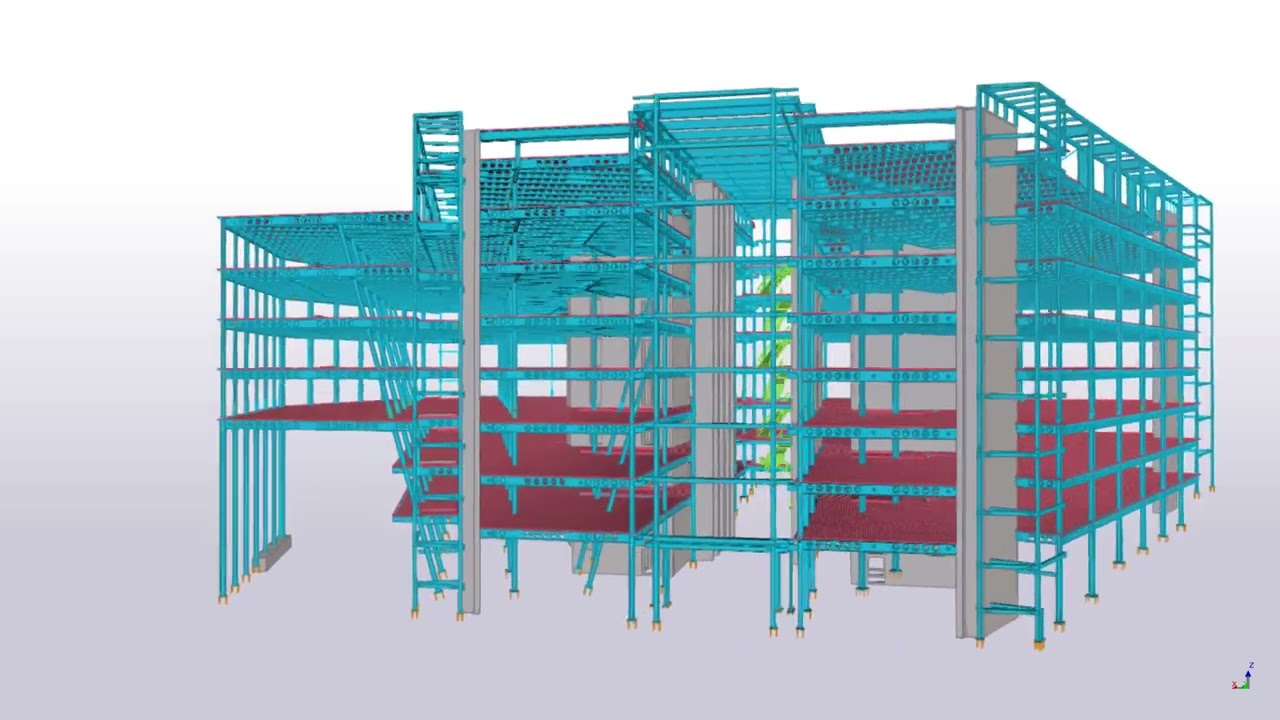

The Haymarket project comprises two 8-storey combined office and retail buildings, B4 and B5, with a unique steel frame solution for load transfer. The north-eastern façade features a Veirendeel truss, spanning approximately 20m over the Haymarket South Tunnel. The combined footprint covers an approximate area of 105m x 75m, and the installation of the truss required careful coordination and temporary works submissions.
Â
Challenges
A notable challenge was the detailing and designing of the staircase's unusual geometry, which was successfully executed without issues on-site. The project's complex geometry posed a significant challenge, which was overcome through careful planning and implementation.
Â
Achievements
- The successful detailing, fabrication, and erection of the project's standout feature, the staircase, showcase BHC's expertise and attention to detail.
- The team's in-depth knowledge of Tekla allowed for precise checking and seamless integration with the workshop and digital infrastructure, ensuring a flawless on-site fit.
Â
Using Tekla software
- Tekla's API enabled efficient steel validation, ensuring optimal modelling for CNC machines and the fabrication process.
- The software's capabilities, such as checking hole placements and adding customised details, streamlined the design and fabrication stages.
